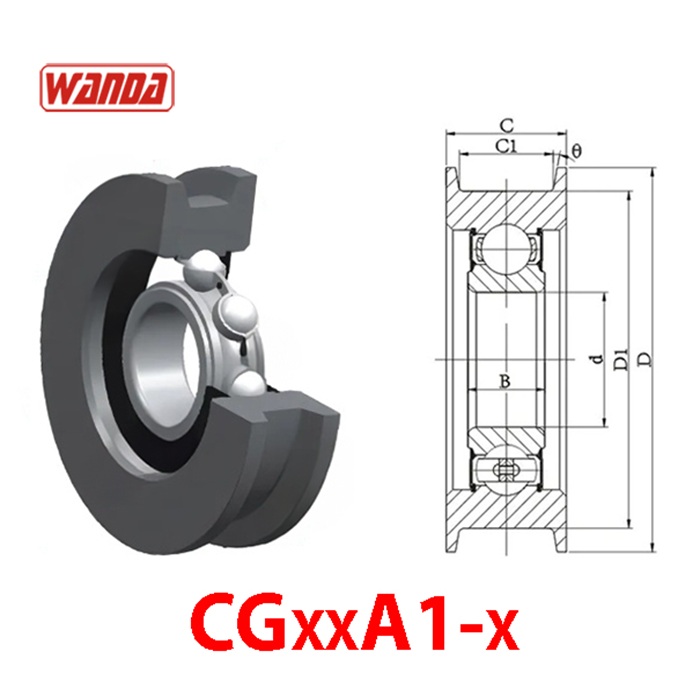

CGxxA1-x Bạc đạn xích lõi 1 hàng bi lăn, nút chặn đôi.
Bảng thống kê các dòng Bạc đạn xích CGxxA1-x
| Mã Wanda | Kích thước (mm) | Mã tham chiếu | Khả năng chịu tải (kN) | |
| (dxDxC/B) | Tĩnh (Cr) | Động (Cor) | ||
| CG25A1-1 | 25×160/140×40/24×30 | 103731 | 44.93 | 27.22 |
| CG30A1-1 | 30×94/80×31/20×19 | 936Z409, K034A-72-11150 | 27 | 15.19 |
| CG30A1-6 | 30×127/102×32/20×19 | 30138A | 27 | 15.19 |
| CG30A1-7 | 30×105/85×30/20×19 | 30147 | 27 | 15.19 |
| CG30A1-9 | 30×82/70×30/22×16 | 780206V, 3003012 | 19.46 | 11.31 |
| CG30A1-12 | 30×87/75×34/22×26 | 780606K, 15C0286 | 27 | 15.19 |
| CG35A1-2 | 35×105/90×30/21×21 | 35BFC1006 | 33.36 | 49.2 |
| CG35A1-10 | 35×109/90×30/20×21 | 33.36 | 19.21 | |
| CG35A1-16 | 35×90/80×29/21×21 | CW307A | 33.36 | 19.21 |
| CG35A1-35 | 35×97/81.6×30/20*21 | 83884 | 33.36 | 19.21 |
| CG35A1-38 | 35*97/83*30/21*21 | 9735 | 33.36 | 19.21 |
| CG35A1-41 | 35*119/101.75*38.3/28.6*21 | 929678300, MG307W1 | 33.36 | 19.21 |
| CG40A1-5 | 40*113/95*32/21*23 | 780708K1 | 40.75 | 24.01 |
| CG40A1-6 | 440*118/100*37/28*23 | 23659-44842A | 40.75 | 24.01 |
| CG40A1-7 | 40*118/100*37/28*23 | W-A377501 | 40.75 | 24.01 |
| CG40A1-8 | 40*123/105*42/31*19 | 33007031, 32921 | 25.6 | 18.1 |
| CG40A1-9 | 40*131/113*48/36*25 | 34007031, 33946 | 35.07 | 23.18 |
| CG40A1-10 | 40*134/115*39/29*27 | 780408 | 50.39 | 37.97 |
| CG40A1-11 | 40*134/115*43/32*27 | 780408H | 50.39 | 37.97 |
| CG40A1-12 | 40*138/120*37/28*23 | 780308K3 | 40.75 | 24.01 |
| CG40A1-17 | 40*114/100*36/28*23 | CW308A, 80007-07700-0 | 40.75 | 24.01 |
| CG40A1-21 | 40*142/124*34/27*23 | 64460-40081G | 40.75 | 24.01 |
| CG40A1-39 | 40*118/100*32/26*23 | 40.75 | 24.01 | |
| CG40A1-40 | 40*118/100*34/27*23 | 780708K | 40.75 | 24.01 |
| CG40A1-42 | 40*105/95*29/21*23 | CW308B | 40.75 | 24.01 |
| CG40A1-43 | 40*120/110*40/30*23 | 780308 | 40.75 | 24.01 |
| CG40A1-44 | 40*113/96*40/30*23 | 780308K2 | 40.75 | 24.01 |
| CG40A1-48 | 40*118/104*37/23*23 | 83C482 | 40.75 | 24.01 |
| CG40A1-50 | 40*118/100*37/28*23 | 780708H | 40.75 | 24.01 |
| CG40A1-56 | 40*114/100*34/27*23 | 780708K114 | 40.75 | 24.01 |
| CG40A1-60 | 40*107/94.5*32/21*23 | 780708K1S | 40.75 | 24.01 |
| CG40A1-61 | 40*140/120*34/27*23 | 780308K | 40.75 | 24.01 |
| CG45A1-1 | 45*123/106*44/32*25 | 780309H, 780309K4 | 52.86 | 31.83 |
| CG45A1-2 | 45*123/110*38.5/31*25 | 780709H | 52.86 | 31.83 |
| CG45A1-3 | 45*126/110*36/25*25 | 780309K | 52.86 | 31.83 |
| CG45A1-4 | 45*138/116*36/25*25 | 1901-53006 | 52.86 | 31.83 |
| CG45A1-7 | 45*117/105*36/26*25 | 52.86 | 31.83 | |
| CG45A1-8 | 45*135/123*36/26*25 | 31440-03360-0 | 47.76 | 32.93 |
| CG45A1-10 | 45*123/106*44/32*25 | 52.86 | 31.83 | |
| CG45A1-15 | 45*121/110*36/28*25 | CW309B | 52.86 | 31.83 |
| CG45A1-16 | 45*123/110*40/31*25 | CW309A, 94211-00800 | 52.86 | 31.83 |
| CG45A1-17 | 45*126/110*38/28*25 | 780709 | 52.86 | 31.83 |
| CG45A1-18 | 45*125/110*35/25*25 | 780709K | 52.86 | 31.83 |
| CG45A1-19 | 45*125/110*35/25*25 | DB0J8-40301 | 52.86 | 31.83 |
| CG45A1-25 | 45*138/116*39/28*25 | 780309K5 | 52.86 | 31.83 |
| CG45A1-28 | 45*126/110*44/34*25 | 780309K3, A60309, 15C0198 | 52.86 | 31.83 |
| CG50A1-3 | 50*141/122*46/27*27 | 780310K | 61.86 | 37.94 |
| CG50A1-4 | 50*148/134*41/25*27 | 780310H | 61.86 | 37.94 |
| CG50A1-5 | 50*151/135*44/35*27 | 61.86 | 37.94 | |
| CG50A1-6 | 50*155/135*42/33*27 | 61.86 | 37.94 | |
| CG50A1-8 | 50*140/122*46/39*27 | CW310 | 61.86 | 37.94 |
| CG50A1-9 | 50*150/132*50/35*29 | 61.86 | 37.94 | |
| CG50A1-17 | 50*124/115*38/32*27 | D8S90-82041 | 61.86 | 37.94 |
| CG55A1-1 | 55*156/140*57/42*44.7 | 81.75 | 51.85 | |
| CG55A1-2 | 55*160/145*52/36*44.5 | 780411 | 77.44 | 62.71 |
| CG65A1-1 | 65*176/160*65/44*49 | 780411 | 104.13 | 68.04 |
| CG75A1-1 | 75*216/200*72/56*54 | 144 | 108.9 | |
| CG75A1-2 | 75*216/200*66/50*54 | 145.4 | 108.9 | |
| CG80A1-1 | 80*250/224*74/54*39 | 3FE-71-31740 | 122.94 | 86.5 |
