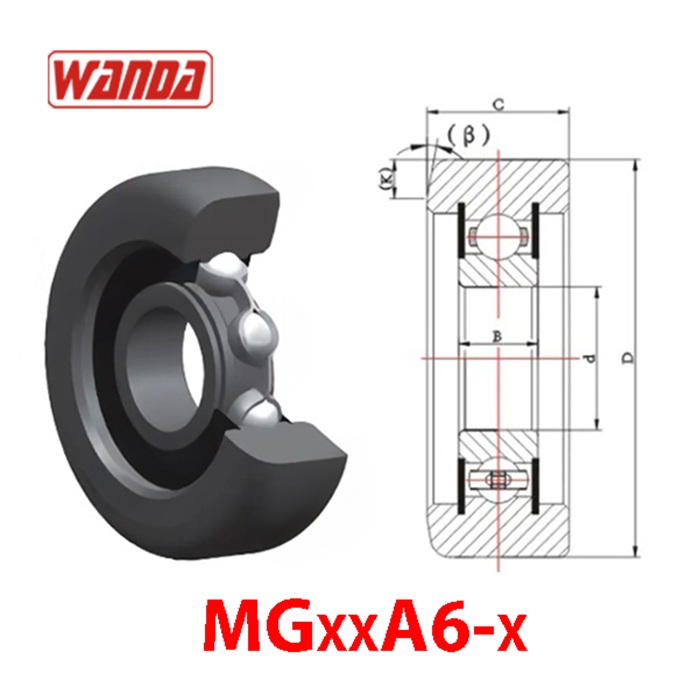

MGxxA6‑x Bạc đạn khung nâng vát thẳng nhẹ 1 bên (vát gần theo phương thẳng đứng), lõi chuyển động bên trong là 1 hàng bi cố định lăn.
Bảng thống kê các dòng Bạc đạn khung MGxxA6‑x
| Mã Wanda | Kích thước (mm) | Mã tham chiếu | Khả năng chịu tải (kN) | |
| (dxDxC/B) | Tĩnh (Cr) | Động (Cor) | ||
| MG24A6–1 | 24×70.5×24/20.5 | 20.6 | 14.8 | |
| MG24A6–2 | 24×71.0×24/20.5 | 20.6 | 14.8 | |
| MG24A6–3 | 24×70.0×24/20.5 | 20.6 | 14.8 | |
| MG35A6–3 | 35×107.8×25/21 | 33.36 | 19.21 | |
| MG35A6–4 | 35×108.7×25/21 | 33.36 | 19.21 | |
| MG35A6–5 | 35x85x25/17 | 25.67 | 15.3 | |
| MG40A6–1 | 40×107.6×30/23 | 32926, 93007035 | 25.6 | 18.1 |
| MG40A6–2 | 40×107.7×30/20 | 32900, 93007007 | 25.6 | 18.1 |
| MG40A6–3 | 40x123x33.5/23 | 33943, 94007007 | 35.07 | 23.18 |
| MG40A6–10 | 40×98.5×28.5/22 | BSW503, MM0232 | 40.75 | 24.01 |
| MG45A6–5 | 45x127x29.92/25 | 2782771 | 52.86 | 31.83 |
| MG45A6–6 | 45×127.81×29.92/25 | 291971 | 52.86 | 31.83 |
| MG45A6–8 | 45x117x32/25 | MG309YY1 | 52.86 | 31.83 |
| MG45A6–9 | 45x118x32/25 | MG309YY1 | 52.86 | 31.83 |
| MG45A6–10 | 45x119x32/25 | MG309YY3 | 52.86 | 31.83 |
| MG45A6–11 | 45x120x32/25 | MG309YY4 | 52.86 | 31.83 |
| MG45A6–12 | 45×127.06×31.7/25 | 1751 | 52.86 | 31.83 |
| MG45A6–13 | 45x127x31.5/25 | 52.86 | 31.83 | |
| MG45A6–16 | 45×128.6×31.75/25 | MG309DDA–PHOS | 52.86 | 31.83 |
| MG50A6–1 | 50x129x34/27 | MG310YY1 | 62 | 38.5 |
| MG50A6–2 | 50x130x34/27 | MG310YY2, SX10A27LL | 62 | 38.5 |
| MG50A6–3 | 50x131x34/27 | MG310YY3 | 62 | 38.5 |
| MG50A6–4 | 50x132x34/27 | MG310YY4 | 62 | 38.5 |
| MG50AB–11M2T1 | 50x123x34/29 | CG92310T 123 | 56.04 | 34.21 |
| MG50A6–12M2T1 | 50×123.2×34/29 | CG92310T 123.2 | 56.04 | 34.21 |
| MG50A6–13M2T1 | 50×123.5×34/29 | CG92310T 123.5 | 56.04 | 34.21 |
| MG50A6–14M2T1 | 50×123.8×34/29 | CG92310T 123.8 | 56.04 | 34.21 |
| MG60A6–1 | 60x149x36/31 | MG312YY1 | 81.75 | 51.85 |
| MG60A6–2 | 60x150x36/31 | MG312YY2 | 81.75 | 51.85 |
| MG60A6–3 | 60x151x36/31 | MG312YY3 | 81.75 | 51.85 |
| MG60A6–4 | 60x152x36/31 | MG312YY4 | 81.75 | 51.85 |
| MG75A6-1M2T1 | 75x200x57/39 | 122.94 | 86.5 | |
